Large fabricated parts
Review identification or logos on compatible frames, plates and assemblies that are awkward to place beneath a fixed head.
FY-LMM05Bring the marking head to the part.
Bring the marking head to the part.
Control the position before the process.

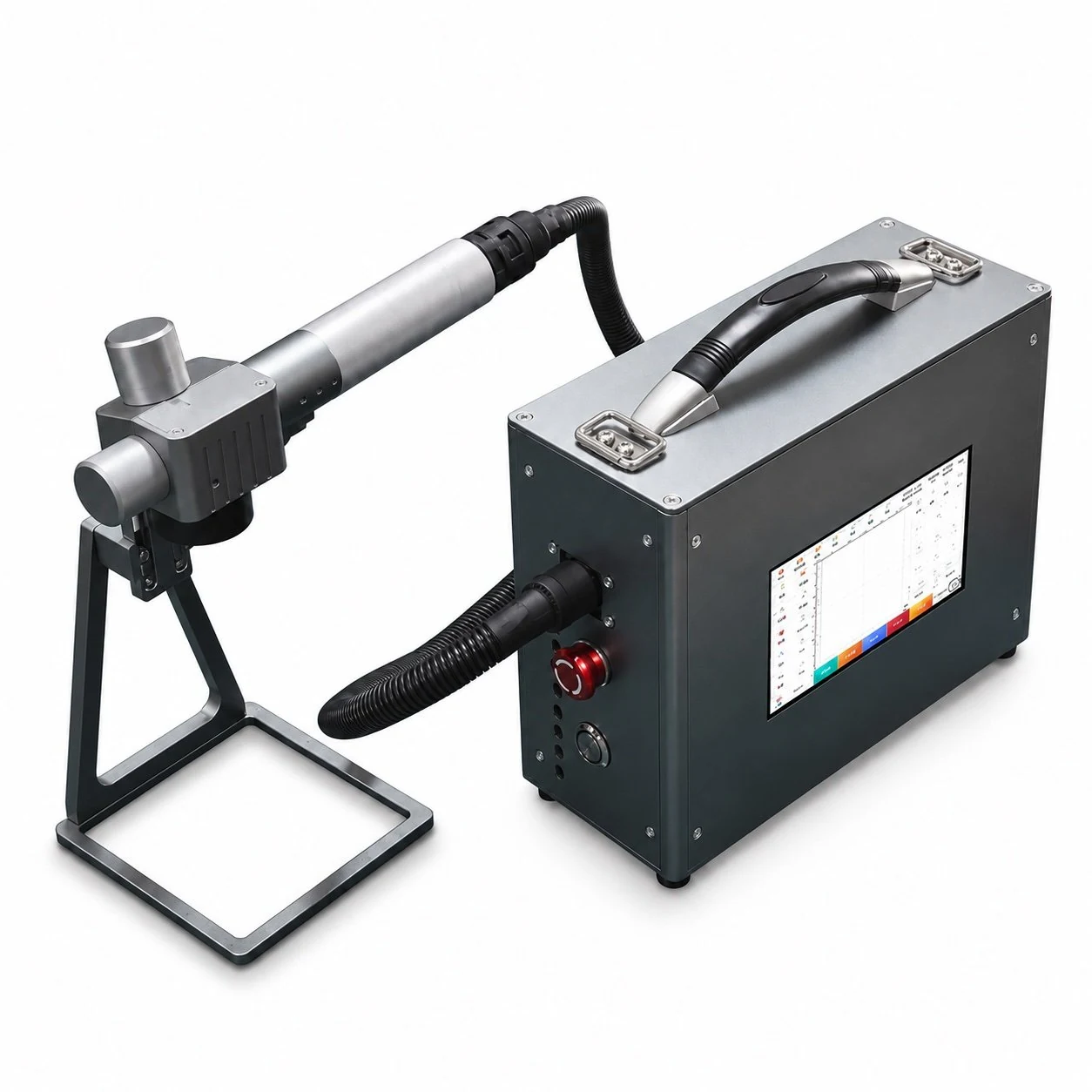

Consider FY-LMM05 when a large, installed or difficult-to-move component cannot be loaded into a conventional station. Review head access, support, focus and the work area alongside the material and required mark.
WorkflowHead moves to the component
Part typesLarge, installed or fixed components
Process planningFocus, support, reach and controlled access
LMM05
01 / FY-LMM05
Machine & details
Confirm the final equipment and configuration in the quotation.
Installed equipment
Evaluate marking at the component location when moving it to a conventional workstation is impractical.
Multiple work positions
Assess each intended position for access, surface orientation, stable head placement and a controlled operating area.
02 / Selection guide
Choose around your application
Match the equipment to the material, part and production workflow.
01 / PART ACCESS
Map the head's route to every marking face.
Overall part size is only one factor. Check cable reach, obstructions, surface orientation and room for the operator and any support at the actual marking location.
- Marking position and surface orientation
- Access route and required cable reach
- Head support and operator working position
Can it mark a very large component?
Discuss my application ↗Review the accessible marking area rather than overall size alone. Reach, positioning, surface geometry and the protective arrangement determine practical suitability.
Confirm the final equipment and configuration in the quotation.
02 / REPEATABLE FOCUS
Make each placement repeatable.
Focus, angle and stability affect the result. Define how the head will be held and located before using a sample to judge the process.
- Controlled distance from head to surface
- Stable head angle during marking
- Positioning aid or support requirement
Will a handheld head give the same result everywhere?
Discuss my application ↗Do not assume it will. Surface condition, focus, angle and stability must be controlled, and a positioning aid or support may be needed.
Confirm the final equipment and configuration in the quotation.
03 / WORK AREA
Plan the process at its real location.
A movable head changes where the process takes place. Describe the surroundings and access so the protective measures, extraction and operating procedure can be reviewed.
- Operator position and surrounding access
- Controlled area and interlock requirements
- Extraction, power and handling procedure
What site information is needed?
Discuss my application ↗Provide photographs or a layout showing the part, operator, nearby access and proposed working positions, together with destination and installation requirements.
Confirm the final equipment and configuration in the quotation.
03 / Configuration
Configuration & supply scope
Confirm the final equipment and configuration in the quotation.
| Machine format | FY-LMM05 handheld marking platform |
|---|---|
| Part handling | Head moves to the large, installed or fixed part |
| Reach / head handling | Confirm cable length, head weight and required support |
| Positioning | Confirm focal-distance control, angle and locating aid |
| Laser source / power | Select for the material and required result |
| Lens / marking field | Confirm artwork size, surface geometry and detail |
| Work-area equipment | Confirm protective arrangement, extraction and utilities |
| Documentation | Available guide covers FY-LMM05-1; confirm supplied variant |
More published configuration details
Configuration scope
The platform is identified below; the quoted equipment and operating values depend on the approved application.
For source selection, compare fiber , MOPA , CO2 and UV laser marking machines .
| Item | Configuration / information to confirm |
|---|---|
| Machine platform | FY-LMM05 handheld marking platform |
| Part handling | Marking head moves to the large, installed or fixed component |
| Reach and positioning | Confirm cable reach, head support, orientation and controlled focal distance |
| Laser source and rated power | Selected for the material and required mark; confirm the exact source in the quotation |
| Lens and marking field | Confirm artwork dimensions, smallest feature, depth and required contrast |
| Process performance | Agree sample result and cycle or line-speed target for the actual material |
| Utilities and supply scope | Confirm electrical supply, cooling, extraction, computer, software and fixtures |
Related equipment
Compare the formats
04 / Downloads
Planning resources
Download FY-LMM05-1 application guide (PDF, English, 6 pages)English document · 574 KB↓Before you enquire
Can it replace a fixed station for every job?+
Compare the handling sequence. A fixed fixture may be more suitable when small parts can be loaded repeatedly; handheld suitability depends on the actual access and positioning conditions.
What should a sample trial include?+
Use the production material and finish, intended mark, proposed head position and support. Record result quality and the complete positioning and marking cycle.
Does the download cover every FY-LMM05 variant?+
The listed application guide covers FY-LMM05-1. Confirm the supplied handheld variant and use the operating instructions provided with that machine.
05 / Discuss my application
Tell us what you need.
Share the component and work-area photos, material, marking position and artwork. Include required reach, support constraints and output target for an FY-LMM05 application review.
Selected machineFY-LMM05
FY-LMM05
Tell us what you need.
Continue on our contact page to share your application and request a configuration.
Discuss my application ↗
