Enclosed fabrication cells
Plan nested sheet parts with a defined cutting zone and coordinated access, loading and extraction.
FY-LCM01-CDefine the cutting zone.
Define the cutting zone.
Plan the complete production cell.
A fully enclosed fiber laser platform for sheet-metal production. Coordinate the cover, viewing arrangements, extraction and table handling with your material, loading cycle and site requirements before fixing the component package.
FormatFully enclosed sheet cutting
Reference area1500 x 3000 mm
HandlingTable arrangement confirmed in quotation
LCM01-C
Product visualization based on the FYXFER catalogue reference.
01 / FY-LCM01-C
Machine & details
Confirm the final equipment and configuration in the quotation.
Metal panels and components
Evaluate drawings, holes and edge finish using the proposed source and material rather than a display sample alone.
Production batch review
Compare repeat parts and complete sheet cycles where transfer, unloading and finishing contribute to output.
02 / Selection guide
Choose around your application
Match the equipment to the material, part and production workflow.
ACCESS & HANDLING
Work through the complete table cycle.
Describe how a sheet is loaded, located, cut and removed. Full-cover and exchange-table arrangements are configuration choices, but the exact table layout and included equipment must be agreed for your machine.
- Loading and unloading method
- Table transfer and maintenance space
- Door and viewing requirements
Are exchange tables and automatic doors standard?
Discuss my application ↗Do not assume either. Confirm the selected table system and door operation explicitly; automatic doors are not established as standard equipment.
Product visualization based on the FYXFER catalogue reference.
SAMPLE & OUTPUT
Measure the part, then the production cycle.
Agree a trial using the actual alloy, thickness and drawing. Inspect critical dimensions, holes, dross and edge finish; record whether the trial machine matches the proposed configuration before accepting the result.
- Sample material and process settings
- Inspection criteria and repeat parts
- Loading, cutting and finishing time
Does maximum speed predict parts per shift?
Discuss my application ↗No. Include handling, piercing, cutting, any table movement and finishing, and state which operations can overlap in the proposed layout.

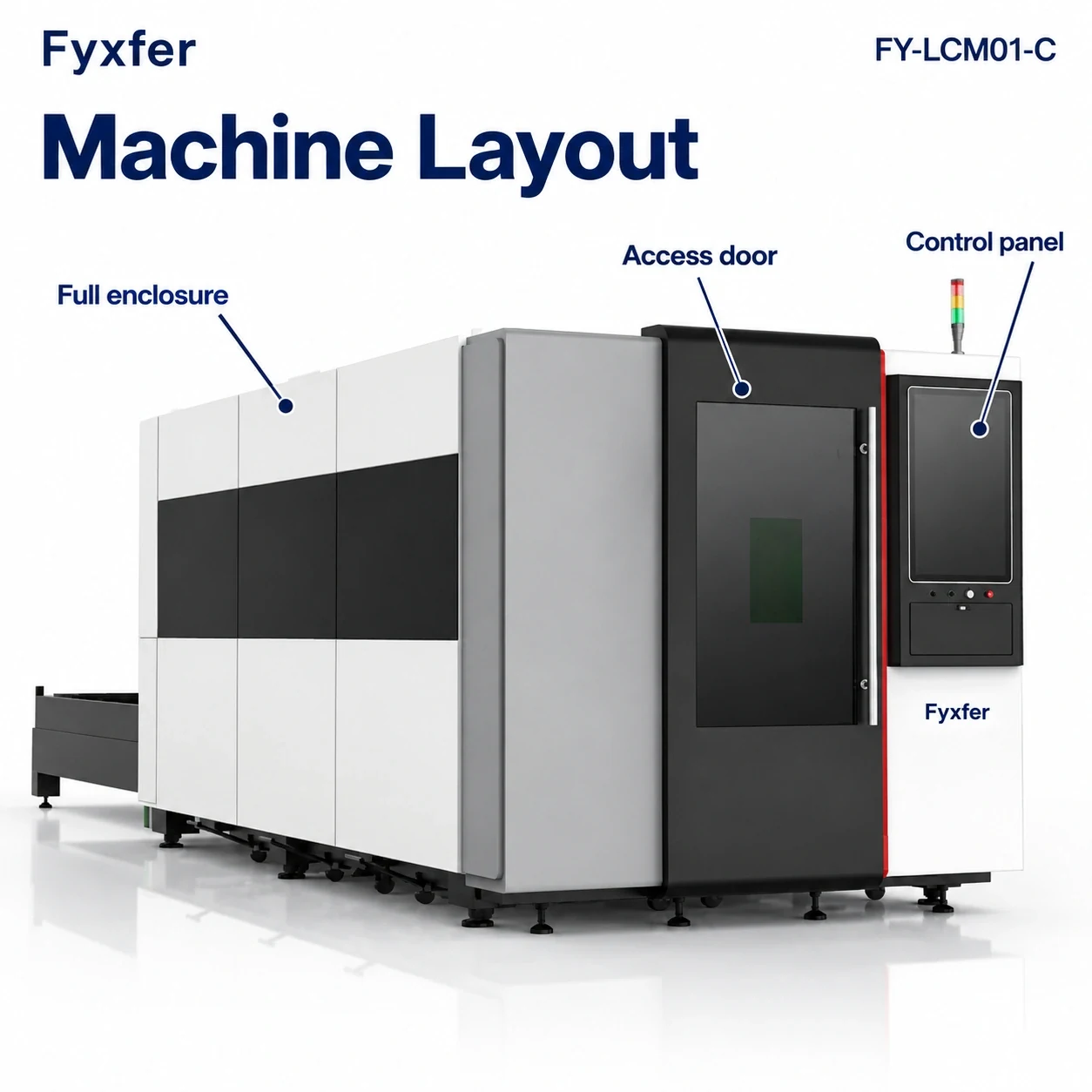

FY-LCM01-C · Machine layout Illustrated layout; component appearance follows the quoted configuration. Open full-size image ↗
ENCLOSURE & UTILITIES
Specify more than the machine cover.
Match extraction, gas, cooling and electrical demand to the selected power. Include interlocks, observation-window protection and destination documentation in the project review rather than treating the enclosure as proof of compliance.
- Guarding and viewing specification
- Gas, extraction and electrical package
- Required destination documentation
Does a full enclosure prove certification?
Discuss my application ↗No. The ordered configuration and its conformity documentation need confirmation. A photograph of a covered machine does not establish certification.
Confirm the final equipment and configuration in the quotation.
03 / Configuration
Configuration & supply scope
Confirm the final equipment and configuration in the quotation.
| Machine platform | FY-LCM01-C; fully enclosed sheet-cutting fiber laser. |
|---|---|
| Listed laser powers | 1.2 / 1.5 / 2 / 3 / 6 / 12 / 20 kW; configuration review required. |
| Working area | 1500 x 3000 mm reference; other sizes on request. |

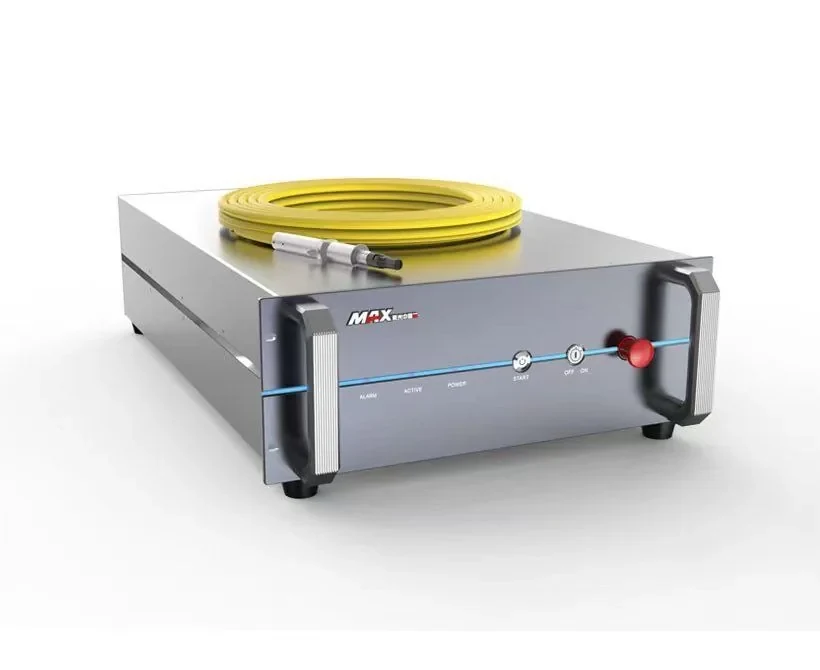

| Source and head | Raycus / MAX and Raytools / Empower options, according to configuration. |

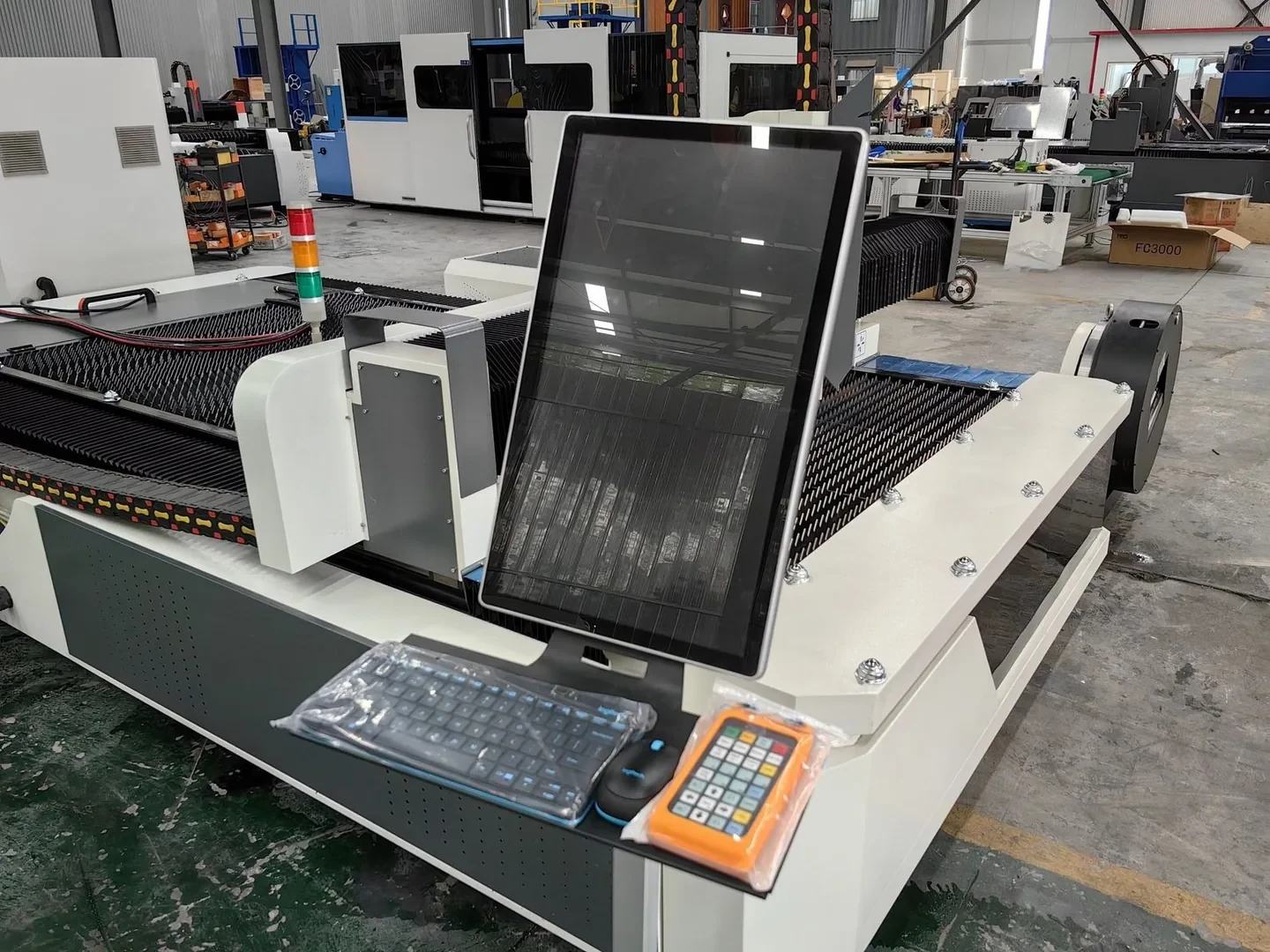

| CNC control | XC3000S or application-matched control package. |
| Motion system | Delta / Panasonic servo options; welded steel bed and matched drive components. |
| Cooling and gas | Hanli or matched chiller; nitrogen, oxygen or prepared compressed air selected by process. |
| Enclosure details | Door interlocks, observation-window protection and destination requirements specified for the order. |
| Table and additional functions | Exchange-table scope confirmed; automatic doors, tube cutting and bevel cutting are not assumed standard. |
| Utilities and performance | Electricity, footprint, cutting thickness, speed and accuracy confirmed for the chosen configuration. |
More published configuration details
Technical Specifications
These are configuration references, not one universal specification. Laser power, bed size, components and utilities must be matched in the final proposal. Exact speed, accuracy, weight and shipping dimensions are confirmed for the selected machine.
| Machine Model | FY-LCM01-C |
|---|---|
| Laser Type | Fiber laser |
| Available Laser Power | 1.2 / 1.5 / 2 / 3 / 6 / 12 / 20 kW; configuration review required |
| Laser Source | Raycus / MAX, according to configuration |
| Working Area | 1500 × 3000 mm reference; other sizes on request |
| X / Y Axis Travel | Confirmed in the final configuration |
| Positioning Accuracy | Defined by bed size, drive system and acceptance conditions |
| Repeat Positioning Accuracy | Defined by bed size, drive system and acceptance conditions |
| Maximum Travel Speed | Defined by bed size, drive system and acceptance conditions |
| Maximum Acceleration | Confirmed in the final configuration |
| Cutting Thickness | Depends on power, material and cutting process |
| Cutting Materials | Suitable metals after material and process review |
| Laser Cutting Head | Raytools / Empower, according to configuration |
| CNC Control System | XC3000S or application-matched control package |
| Servo Motor | Delta / Panasonic options; matched to the drive system |
| Linear Guide Rail | Confirmed in the final configuration |
| Rack & Pinion | Confirmed in the final configuration |
| Reducer | Confirmed in the final configuration |
| Water Chiller | Hanli or specified matching configuration |
| Assist Gas | Nitrogen, oxygen or prepared compressed air, according to process |
| Electrical Supply | Confirmed in the final configuration |
| Total Connected Load | Confirmed in the final configuration |
| Machine Dimensions | Confirmed in the final configuration |
| Packing Dimensions | Confirmed in the final configuration |
| Net Weight | Confirmed in the final configuration |
| Gross Weight | Confirmed in the final configuration |
| Machine Bed | Welded steel structure; layout depends on selected working area |
How to compare fully enclosed laser cutter quotations
Compare the same material, part drawing and acceptance requirements before comparing prices. Two fully enclosed laser cutters with the same stated laser power may have different working areas, component packages, loading arrangements and installation requirements. For FY-LCM01-C, use the written quotation to identify the equipment included and the options priced separately.

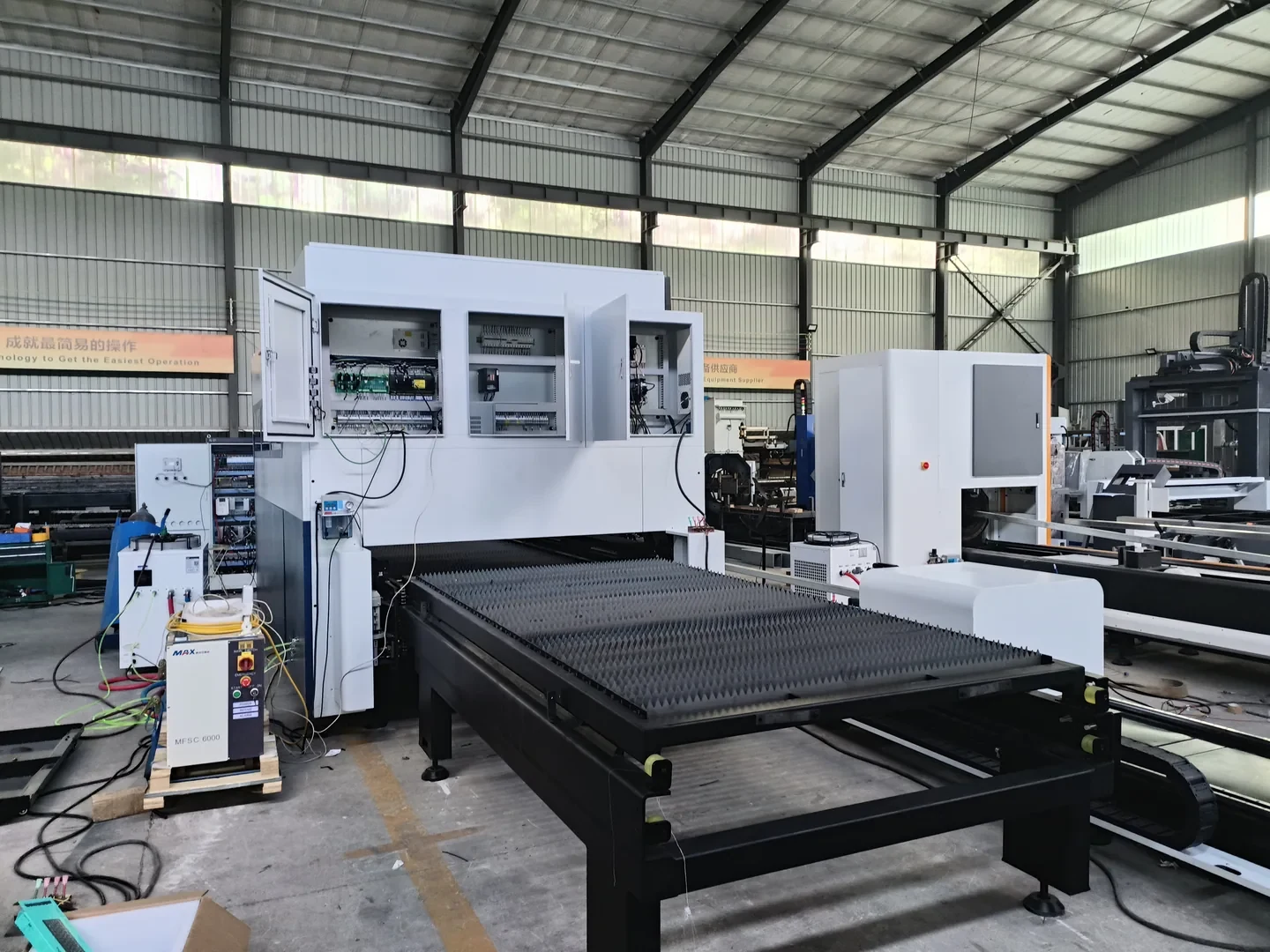

FY-LCM01-C reference configurations include full-cover, exchange-table and exhaust-system arrangements. Confirm the exact layout and included equipment in the project quotation. A configuration photograph illustrates a machine arrangement; the quotation defines the equipment being supplied.
| Compare | What to specify or request |
|---|---|
| Material and finished part | Material grade, coating, usual and maximum thickness, drawing, critical dimensions and required edge finish. |
| Cutting package | Laser source and power, cutting head, controller and assist-gas arrangement for the proposed material and process. |
| Sheet handling | Usable cutting area, loading method, exchange-table arrangement and space for loading, unloading and maintenance. |
| Enclosure and extraction | Door and viewing arrangements, access controls, extraction equipment and the workshop interfaces included in the supply scope. |
| Utilities and installation | Required electrical supply and connected load, cooling, gas or air preparation, installation work and items supplied by the buyer. |
| Acceptance and support | Agreed sample-cut checks, production-cycle measurement, documentation, training and service scope. |
Related equipment
Compare the formats
04 / Downloads
Planning resources
Download the fiber laser cutting selection guideEnglish document · 91 KB↓Before you enquire
Should I choose open or fully enclosed?+
Compare access and handling needs with the required guarding, viewing and extraction arrangement for the actual installation.
Is a compressor always needed?+
It depends on the cutting gas and pneumatic package. Compressed-air cutting requires matched capacity, drying and filtration.
What belongs in sample acceptance?+
Record material and settings, agreed part measurements, repeatability checks and complete job time, identifying any differences from the quoted machine.
05 / Discuss my application
Tell us what you need.
Send your material range, sheet size, representative drawing and required output. Mention FY-LCM01-C and describe table handling, access and destination documentation needs.
Selected machineFY-LCM01-C
FY-LCM01-C
Tell us what you need.
Continue on our contact page to share your application and request a configuration.
Discuss my application ↗
