Review large plate components with their dimensions, material and loading requirements before selecting the bed.
FY-LCM01-GA longer sheet.
A longer sheet.
A layout planned around it.

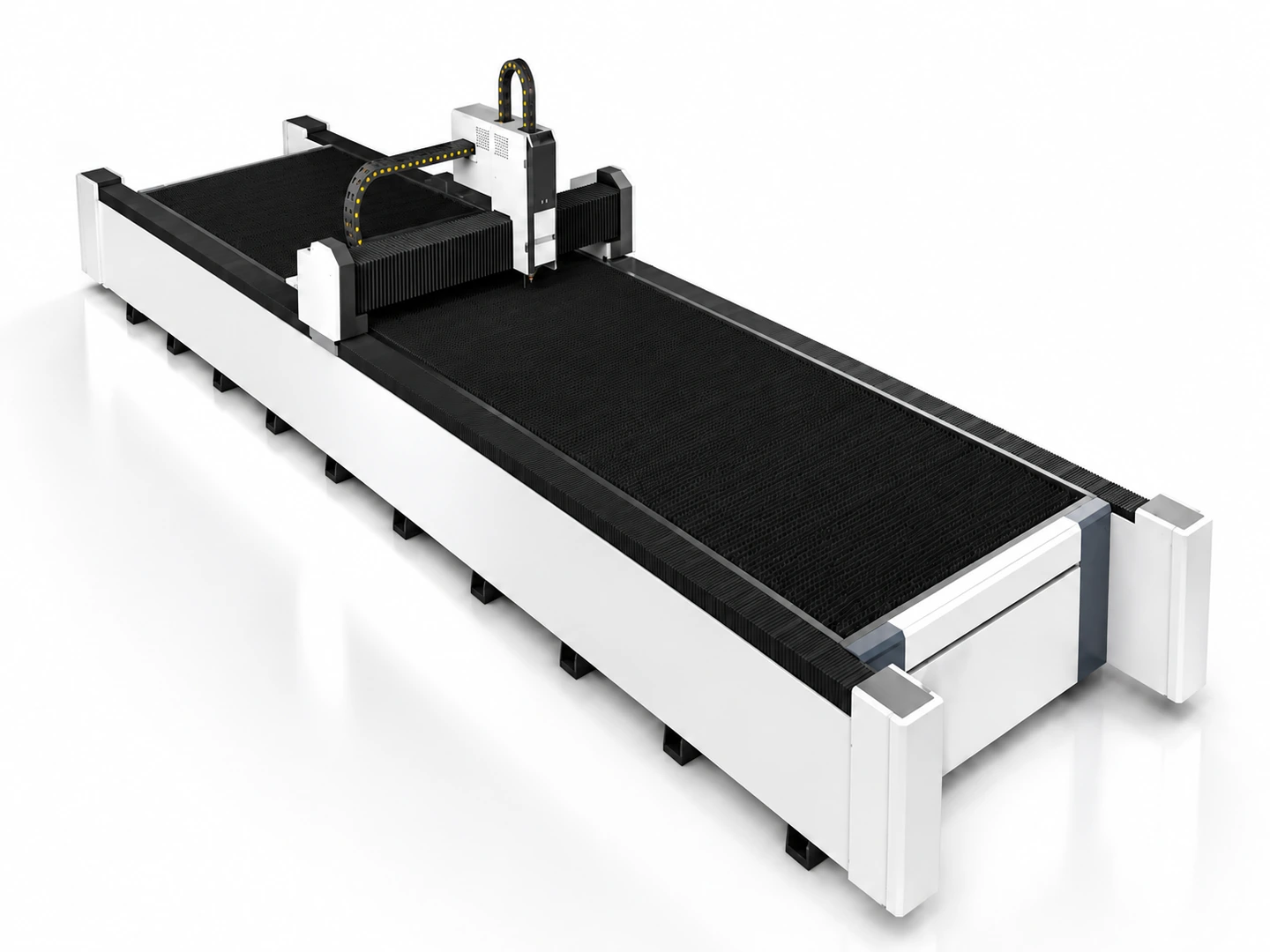

An open gantry fiber laser platform for large-format metal fabrication. Define the bed, lifting access and production workload together, then match the laser and motion package to your actual parts.
FormatOpen gantry
Reference area2000 x 6000 mm
Reference power3 kW configuration
LCM01-G

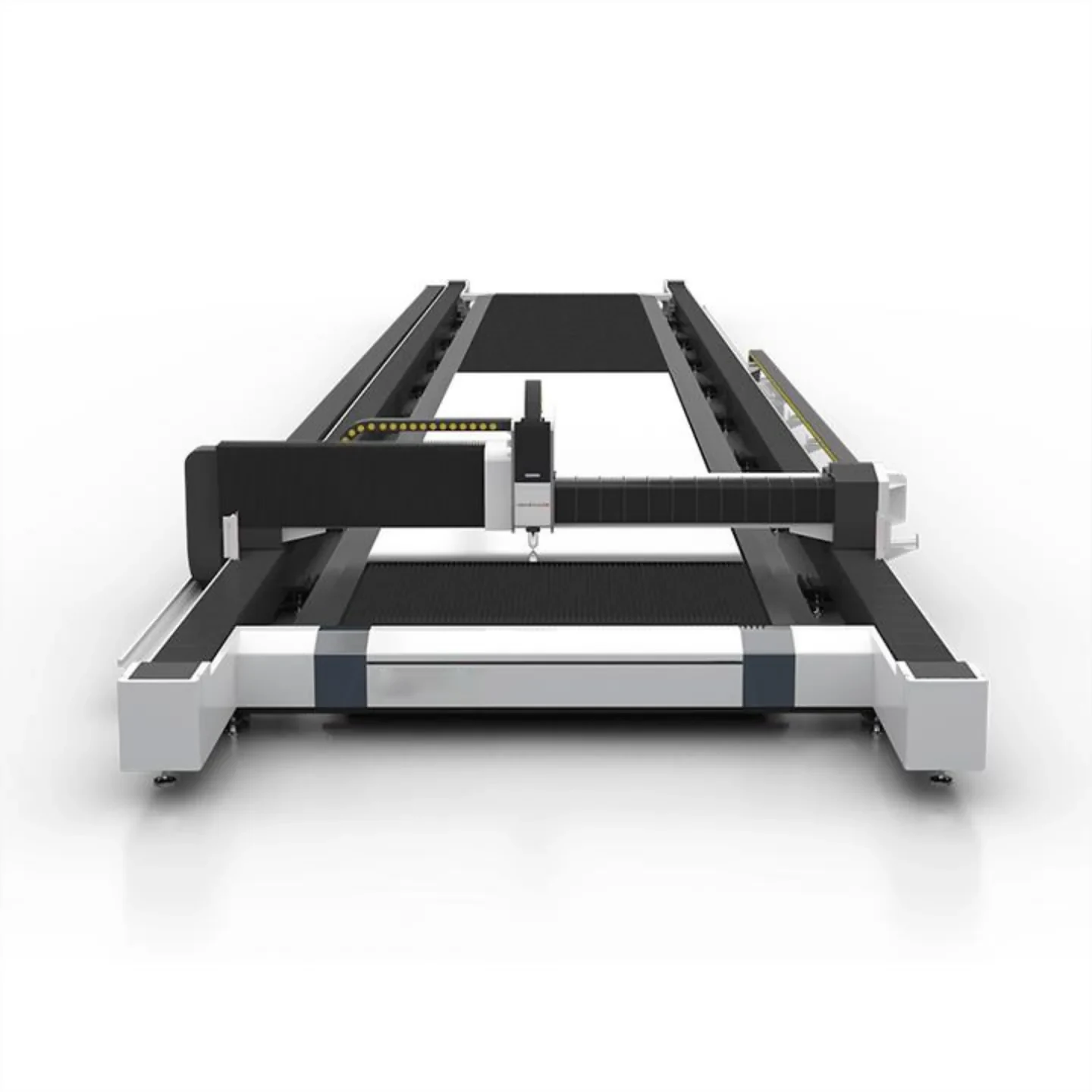

Product visualization based on the FYXFER catalogue reference.
01 / FY-LCM01-G
Machine & details
Confirm the final equipment and configuration in the quotation.
General sheet fabrication
Arrange profiles, brackets and nested parts around the sheet format and required finished edge.
Vehicle and agricultural equipment
Assess flat-sheet components from representative drawings rather than inferring capacity from the machine footprint.
02 / Selection guide
Choose around your application
Match the equipment to the material, part and production workflow.
BED & LOADING
Plan the sheet route before the bed.
Use standard sheet sizes and the largest part to define the effective cutting area. Then allow for lifting equipment, sheet movement and access around the open gantry; usable travel is not the whole installation.
- Sheet dimensions and stock weight
- Lifting route and surrounding clearance
- Largest part and nesting requirement
Is 2000 x 6000 mm the only size?
Discuss my application ↗It is a documented reference. Other bed dimensions require a project review of the work area, motion package and loading layout.
Product visualization based on the FYXFER catalogue reference.
SOURCE & PROCESS
Review power as a complete configuration.
The documented example is 3 kW. Other powers require matching the head, gas supply, cooling and extraction to the material range; the reference does not establish a universal thickness or output rating.
- Exact alloy and coating
- Normal and maximum thickness
- Edge target and sample drawing
Does more power guarantee more output?
Discuss my application ↗No. Compare the full job, including sheet handling, piercing, cutting and unloading, against the same part and acceptance requirements.

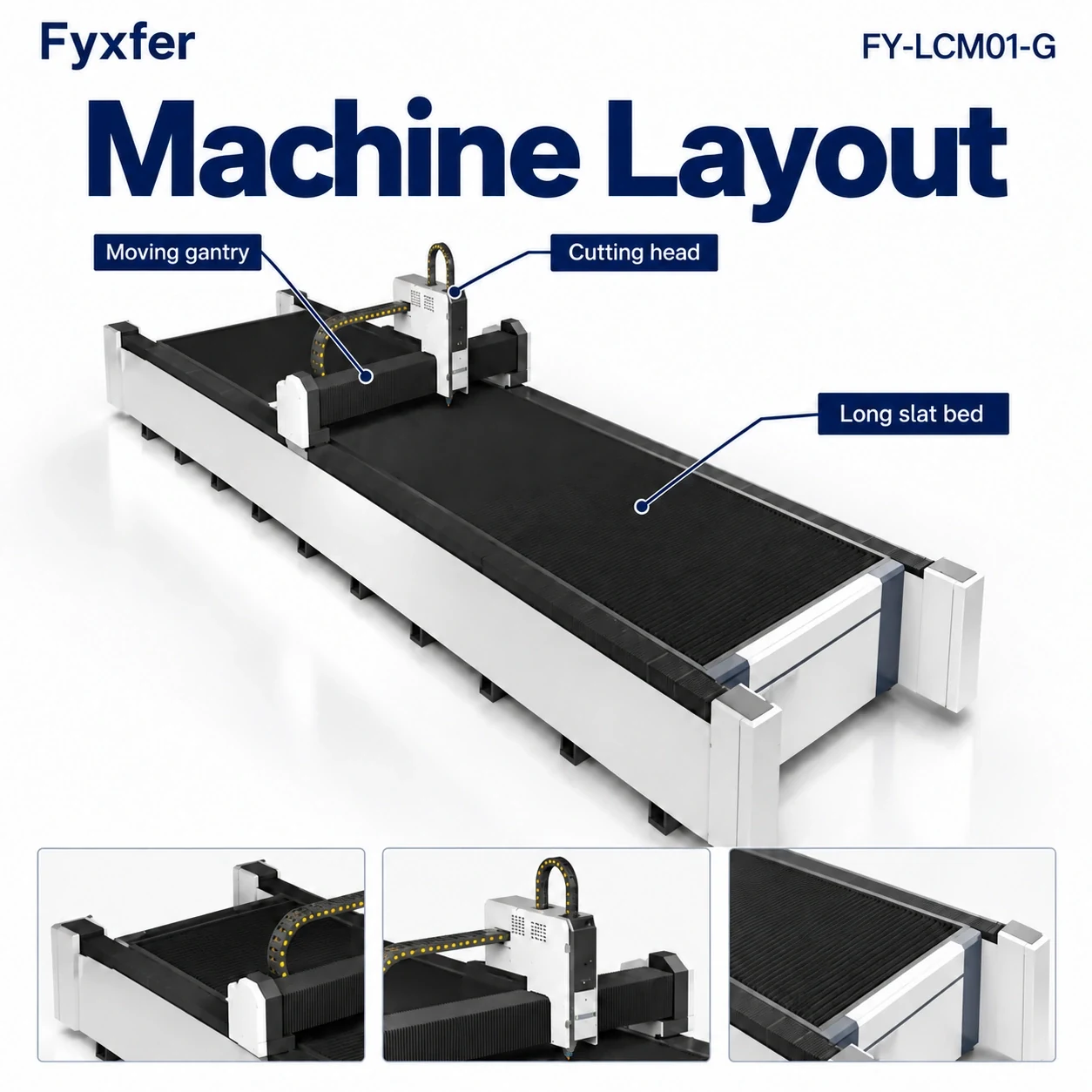

FY-LCM01-G · Machine layout Illustrated layout; component appearance follows the quoted configuration. Open full-size image ↗
INSTALLATION
Account for the length outside the cutting zone.
A long-bed project needs an agreed machine layout, operator position and service access. Specify which auxiliary equipment and site works belong to the supplier and which the workshop prepares.
- Machine and handling layout
- Electrical and assist-gas requirements
- Extraction and protective arrangements
Can an open layout be treated as guarded?
Discuss my application ↗The open format does not define the completed protective installation. Review access control, guarding and destination requirements for the quoted system.
Confirm the final equipment and configuration in the quotation.
03 / Configuration
Configuration & supply scope
Confirm the final equipment and configuration in the quotation.
| Machine platform | FY-LCM01-G; open gantry fiber laser with welded steel bed. |
|---|---|
| Laser power | 3 kW reference configuration; other powers on request after review. |
| Working area | 2000 x 6000 mm reference; custom bed dimensions require confirmation. |
| Source and head | Raycus / MAX source and Raytools / Empower head options. |
| Control | XC3000S or an application-matched CNC package. |
| Motion package | Delta / Panasonic servo options; drive components matched to bed size. |
| Cooling | Hanli or specified matching water chiller. |
| Assist gas | Nitrogen, oxygen or prepared compressed air, according to process. |
| Installation and performance | Electrical supply, overall dimensions, speed and positioning performance confirmed for the selected machine. |
| Optional equipment | Exchange-table arrangements, extraction, air preparation and protective enclosure require separate quotation and review. |
More published configuration details
Technical Specifications
These are configuration references, not one universal specification. Laser power, bed size, components and utilities must be matched in the final proposal. Exact speed, accuracy, weight and shipping dimensions are confirmed for the selected machine.
| Machine Model | FY-LCM01-G |
|---|---|
| Laser Type | Fiber laser |
| Available Laser Power | 3 kW reference configuration; other powers on request |
| Laser Source | Raycus / MAX, according to configuration |
| Working Area | 2000 × 6000 mm reference; custom bed dimensions |
| X / Y Axis Travel | Confirmed in the final configuration |
| Positioning Accuracy | Defined by bed size, drive system and acceptance conditions |
| Repeat Positioning Accuracy | Defined by bed size, drive system and acceptance conditions |
| Maximum Travel Speed | Defined by bed size, drive system and acceptance conditions |
| Maximum Acceleration | Confirmed in the final configuration |
| Cutting Thickness | Depends on power, material and cutting process |
| Cutting Materials | Suitable metals after material and process review |

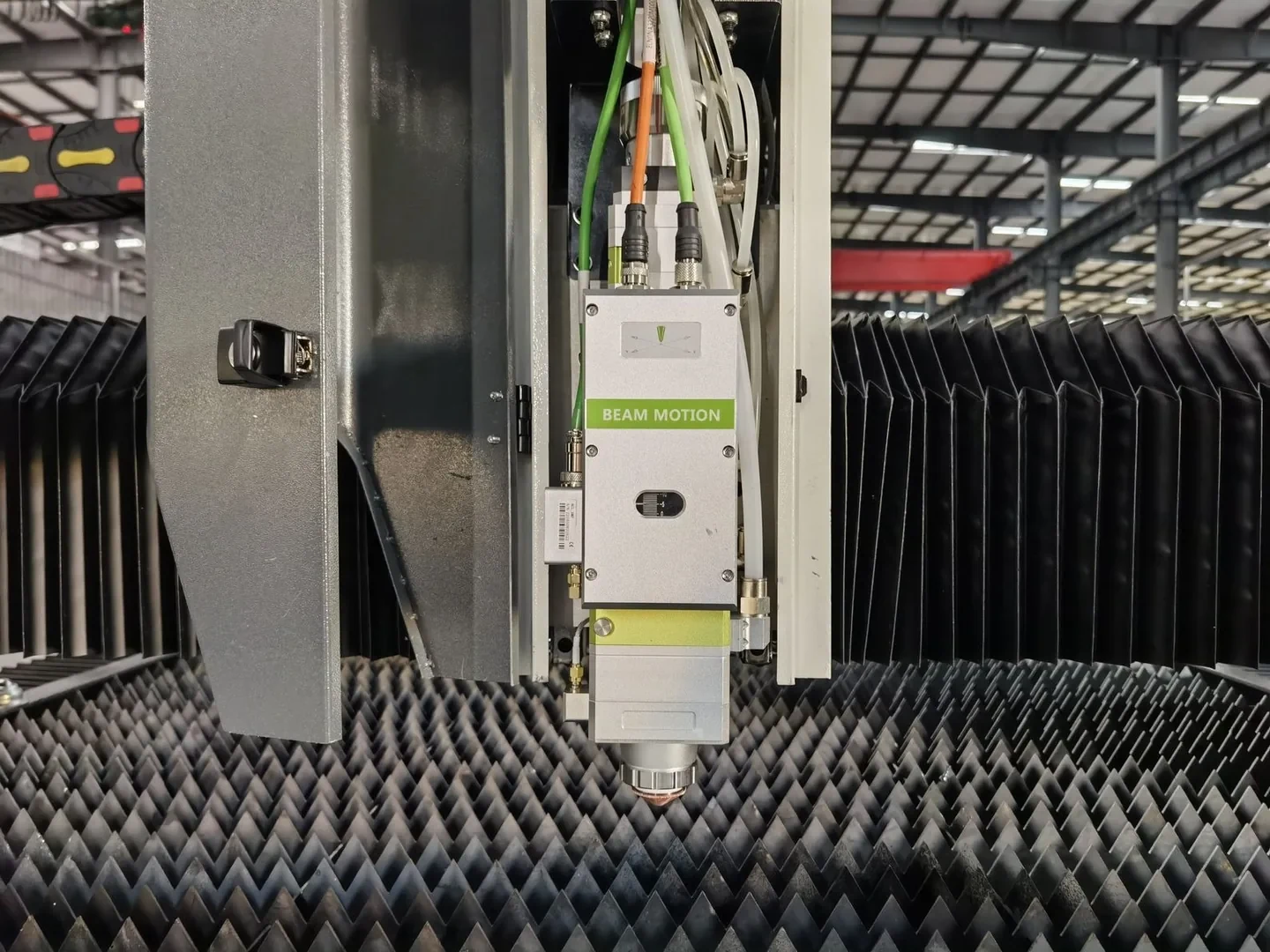

| Laser Cutting Head | Raytools / Empower, according to configuration |
| CNC Control System | XC3000S or application-matched control package |
| Servo Motor | Delta / Panasonic options; matched to the drive system |
| Linear Guide Rail | Confirmed in the final configuration |
| Rack & Pinion | Confirmed in the final configuration |
| Reducer | Confirmed in the final configuration |
| Water Chiller | Hanli or specified matching configuration |
| Assist Gas | Nitrogen, oxygen or prepared compressed air, according to process |
| Electrical Supply | Confirmed in the final configuration |
| Total Connected Load | Confirmed in the final configuration |
| Machine Dimensions | Confirmed in the final configuration |
| Packing Dimensions | Confirmed in the final configuration |
| Net Weight | Confirmed in the final configuration |
| Gross Weight | Confirmed in the final configuration |
| Machine Bed | Welded steel structure; layout depends on selected working area |
Related equipment
Compare the formats
04 / Downloads
Planning resources
Download the fiber laser cutting selection guideEnglish document · 91 KB↓Before you enquire
Can it cut reflective metals?+
A compatible source and process must be reviewed for the exact alloy and thickness; provide a representative sample requirement.
How is loading arranged?+
The open structure provides access around the bed. Final lifting equipment, loading route and exclusion area follow your sheet and workshop layout.
Which cutting gas should I use?+
Choose nitrogen, oxygen or prepared air against the material and edge requirement, then specify its supply conditions with the machine.
05 / Discuss my application
Tell us what you need.
Send sheet sizes, largest parts, material thicknesses, lifting arrangements and a workshop plan. Mention FY-LCM01-G so bed length and process requirements are reviewed together.
