Fabricated metal assemblies
Review sheet-metal cabinets, enclosures and workshop components using the alloy, joint geometry and weld acceptance criteria.
FY-WCC01Start with the joint.
Start with the joint.
Choose the matching setup.
A handheld fiber laser platform for metal welding, surface cleaning and manual cutting. Review the job and sample result, then specify the power, process head, wire feeder and workshop package for the selected configuration.
ProcessWelding, cleaning and manual cutting
Power options1500 / 2000 / 3000 W
HandlingHandheld process setup
WCC01

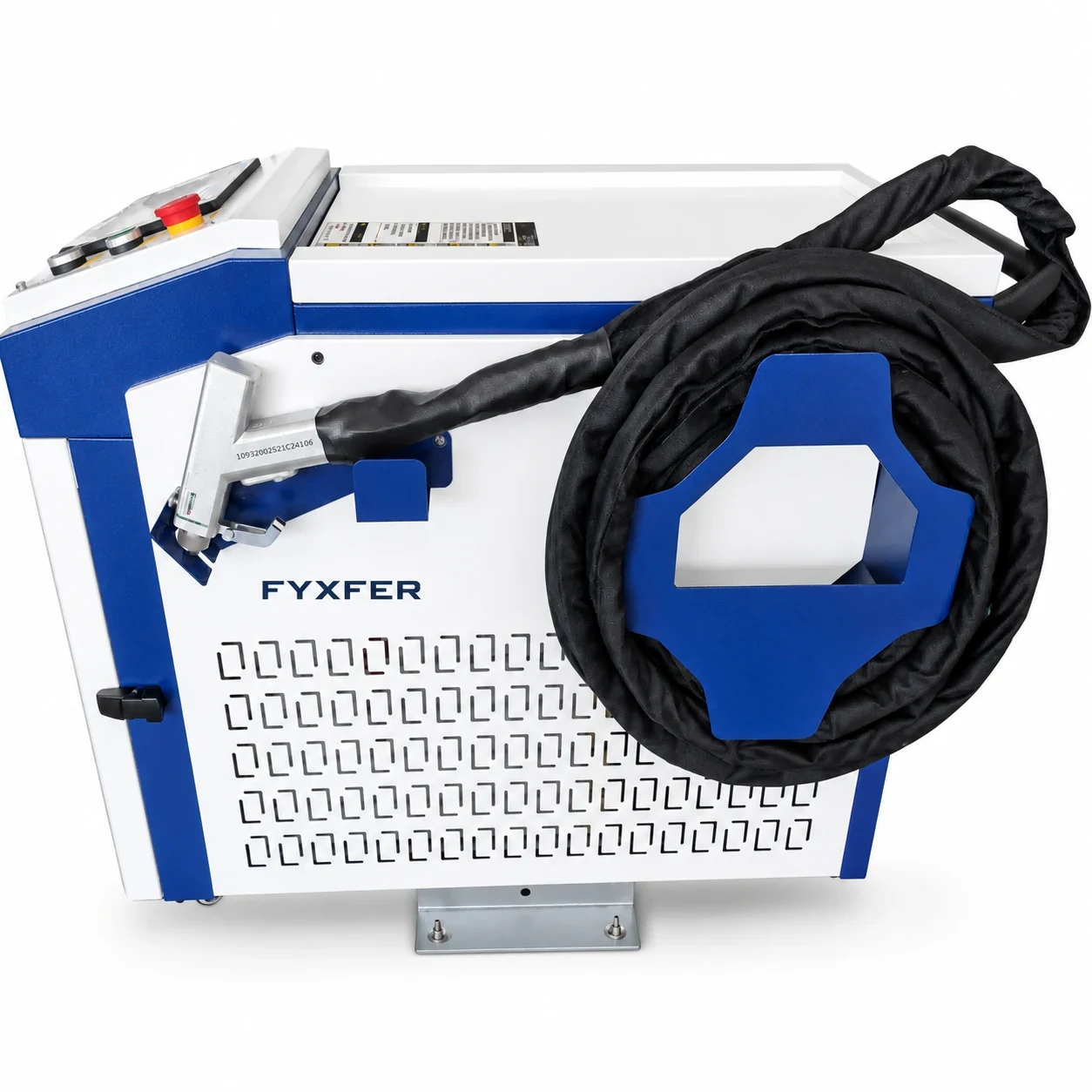

Source product image. Final configuration and included accessories are confirmed in the quotation.
01 / FY-WCC01
Machine & details
Confirm the final equipment and configuration in the quotation.
Surface preparation
Assess suitable residue-removal and cleaning tasks with the matched head and lens, considering the coating and underlying substrate.
Manual cutting tasks
Evaluate appropriate handheld cuts separately. Repeated profiles, nesting and programmed sheet work call for a CNC cutting comparison.
02 / Selection guide
Choose around your application
Match the equipment to the material, part and production workflow.
JOINT & MATERIAL
Compare the same joint across power options.
Provide the alloy, thickness, gap, preparation and target finish. A representative sample should record process settings and acceptance checks; laser output alone cannot establish penetration, weld strength or production time.
- Part drawing and joint fit-up
- Surface condition and thickness
- Required inspection or strength criteria
What should a welding test record?
Discuss my application ↗Record power, process speed, shielding gas, wire and preparation, and identify any penetration or strength test actually performed.
Source product image. Final configuration and included accessories are confirmed in the quotation.
MODES & ACCESSORIES
Specify the equipment for each process.
Welding, cleaning and cutting use their matching setups rather than operating simultaneously. Review the heads, lenses, feeder and consumables for the jobs you need, instead of assuming every accessory is included.
- Primary process and secondary jobs
- Head, lens and nozzle package
- Wire feed and replacement consumables
Is the 0-6 mm scan figure cleaning coverage?
Discuss my application ↗No. The manual lists it as welding scan width. Cleaning coverage and suitability need review with the selected cleaning setup.

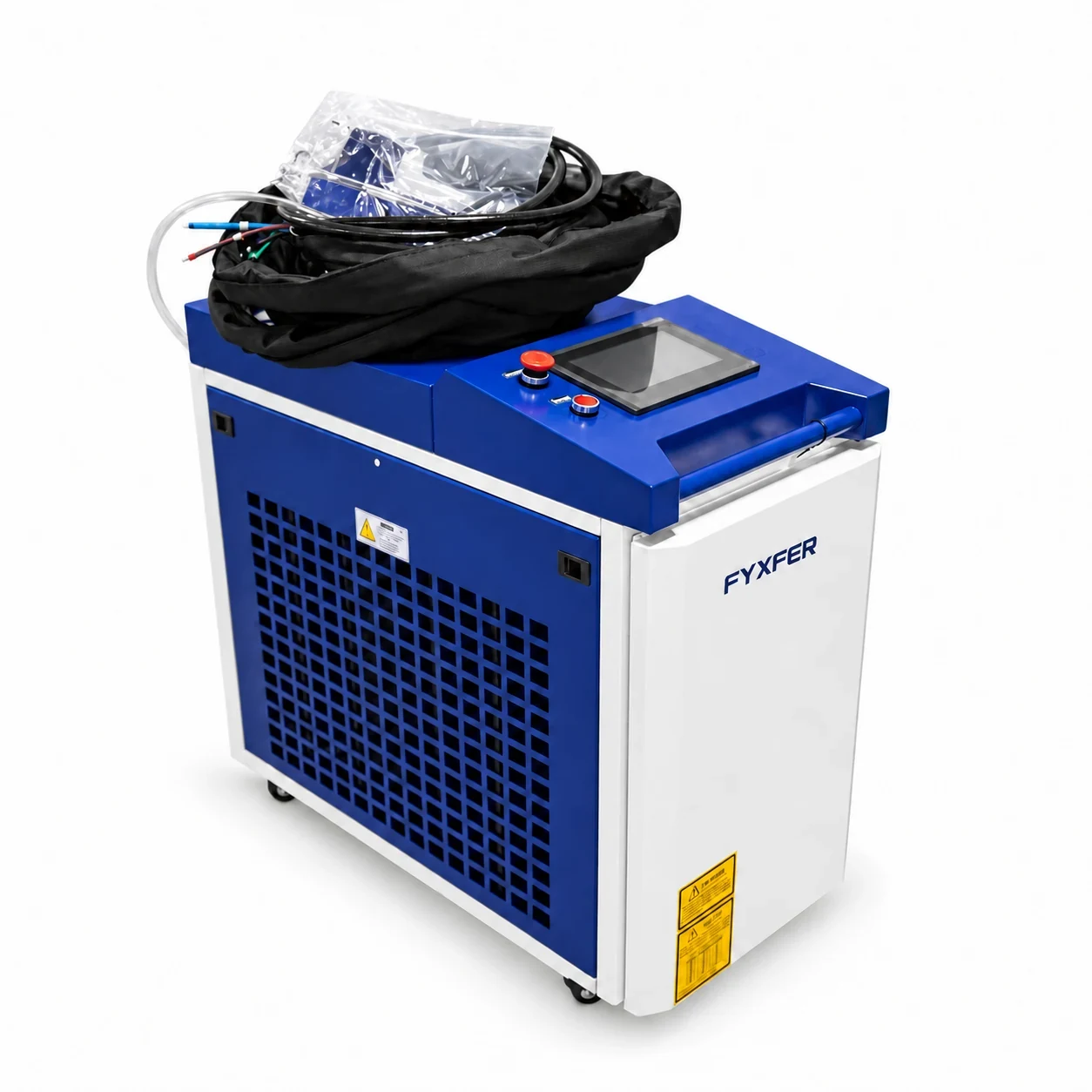

FYXFER control display, handheld torch, cable and cabinet configuration.
REACH & WORKSHOP
Plan the handheld work area.
Confirm torch reach, cable routing, electrical version and gas supply with the ordered unit. Include ventilation, beam containment and trained operation in the installation review, alongside cooling access and process-head requirements.
- Cable reach and routing
- Facility power and shielding gas
- Controlled work area and extraction
Can I assume every version uses 220 V?
Discuss my application ↗No. The sales sheet distinguishes 1500/2000 W and 3000 W electrical versions; confirm phase, frequency, demand and the ordered nameplate.
Equipment photograph supplied in the FY-WCC01 model folder.
03 / Configuration
Configuration & supply scope
Confirm the final equipment and configuration in the quotation.
| Functions | Welding, cleaning and handheld cutting with matching process setups. |
|---|---|
| Documented powers | 1500 W / 2000 W / 3000 W; confirm the current laser-source configuration. |
| Wavelength | 1080 +/- 1 nm in the supplied specification and manual. |
| Operating mode | Continuous or modulated, as documented. |
| Welding scan width | 0-6 mm in the manual; not a cleaning-width specification. |
| Cooling and space | Water chiller; matched manual and coolant apply. Supplied manual calls for at least 60 cm heat-dissipation clearance. |
| Electrical references | AC 220 V +/-10% for 1500/2000 W; AC 380 V for 3000 W. Confirm the complete electrical version. |
| Cable and reach | Length, permitted routing and working reach confirmed for the workshop. |
| Heads and accessories | Heads/lenses, feeder, nozzles, protective windows and consumables itemised in the quotation. |
| Weld capacity and output | Established through representative material/joint trials, not power alone. |
More published configuration details
FY-WCC01 technical configuration
Use the documented options below to prepare your configuration request. Confirm working reach and material-specific welding results for the ordered unit.
| Model | FY-WCC01 |
|---|---|
| Primary functions | Laser welding, cleaning and handheld cutting |
| Documented laser power options | 1500 W / 2000 W / 3000 W; confirm the current laser-source configuration |
| Laser wavelength | 1080 ± 1 nm, listed in the supplied specification and manual |
| Operating mode | Continuous or modulated |
| Welding scan width | 0–6 mm, as listed in the operating manual; this is not the cleaning coverage width |
| Cooling | Water chiller shown in the supplied equipment layout; coolant must follow the matched manual |
| Electrical version | The sales sheet lists AC 220 V ±10% for 1500/2000 W and AC 380 V for 3000 W. Confirm phase, frequency, input demand, protection and the nameplate of the ordered unit. |
| Handheld cable and work reach | Confirm the required cable length, reach and permitted routing for your workshop |
| Heads, wire feeder and accessories | Specify the process heads/lenses, feeder, nozzles, protective windows, cables and consumables in the quotation |
| Weld thickness and production speed | Confirm through a representative material and joint test. Laser output power alone does not establish penetration, weld acceptance or cycle time. |
Related equipment
Compare the formats
Before you enquire
Why do some documents say 4-in-1?+
They count weld-seam cleaning separately. Welding, cleaning and cutting remain three main processes using their matching setups, rather than simultaneous operations.
Can I weld aluminium or copper?+
The manual lists them, but the exact alloy, surface, joint and source/head package need review, particularly for reflective materials.
Are stock, warranty and service fixed here?+
No. Price, availability, dispatch, warranty and spare-parts terms remain subject to the final configuration and quotation.
05 / Discuss my application
Tell us what you need.
Mention FY-WCC01 and send your primary process, material, joint or surface photos, thickness and acceptance target. Add facility power and required torch reach.
