Review material grade, thickness, contours and edge requirements with a drawing or representative sample.
FY-WJ01Bring the material.
Bring the material.
Define the edge you need.

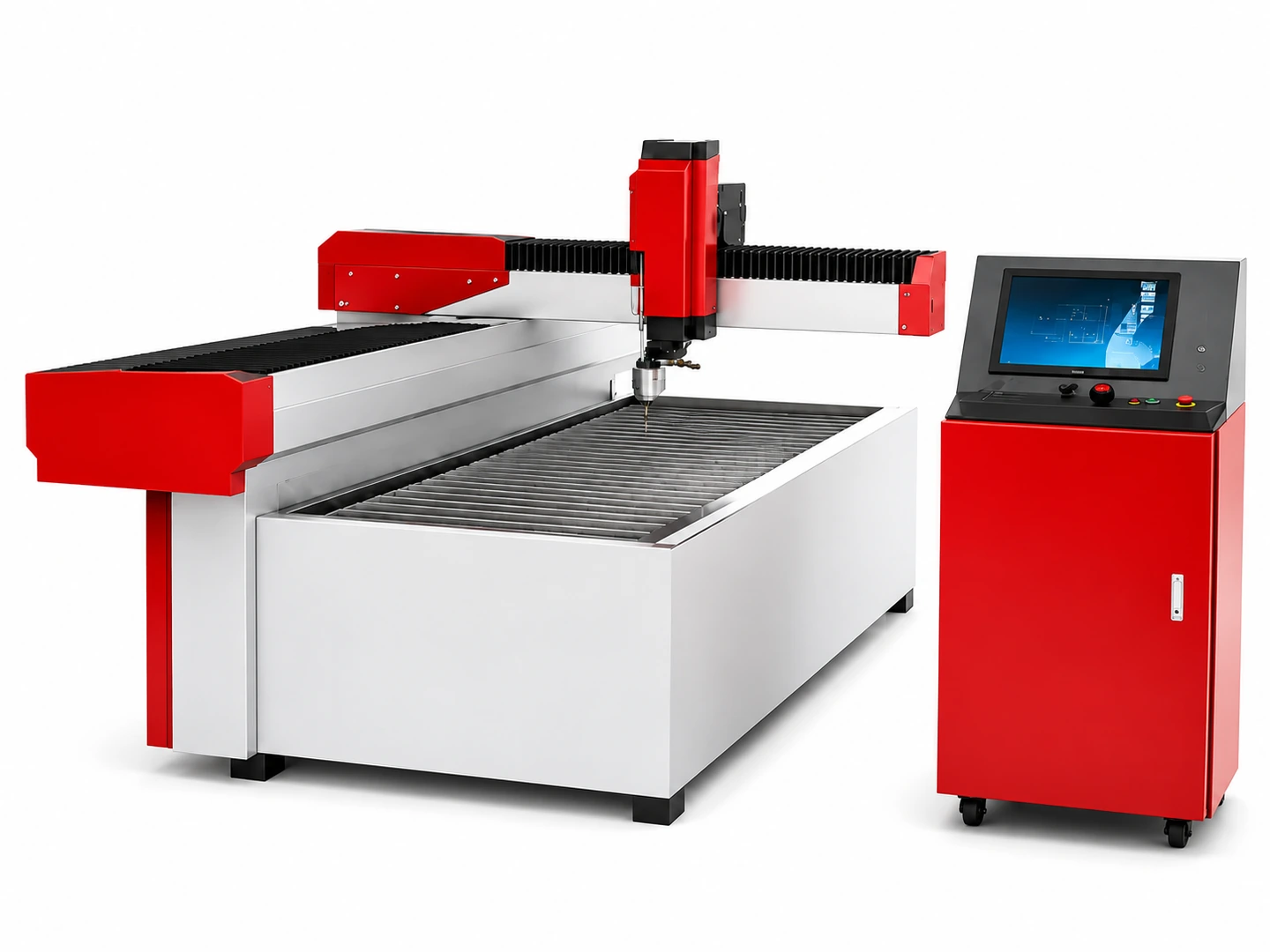

A cantilever waterjet cutting layout with a slat worktable and separate CNC console. Review your material, part geometry and required edge before specifying the work area, pump, cutting head and any abrasive-feed arrangement.
FormatCantilever cutting table
SupportSlat worktable
ControlSeparate CNC console
WJ01

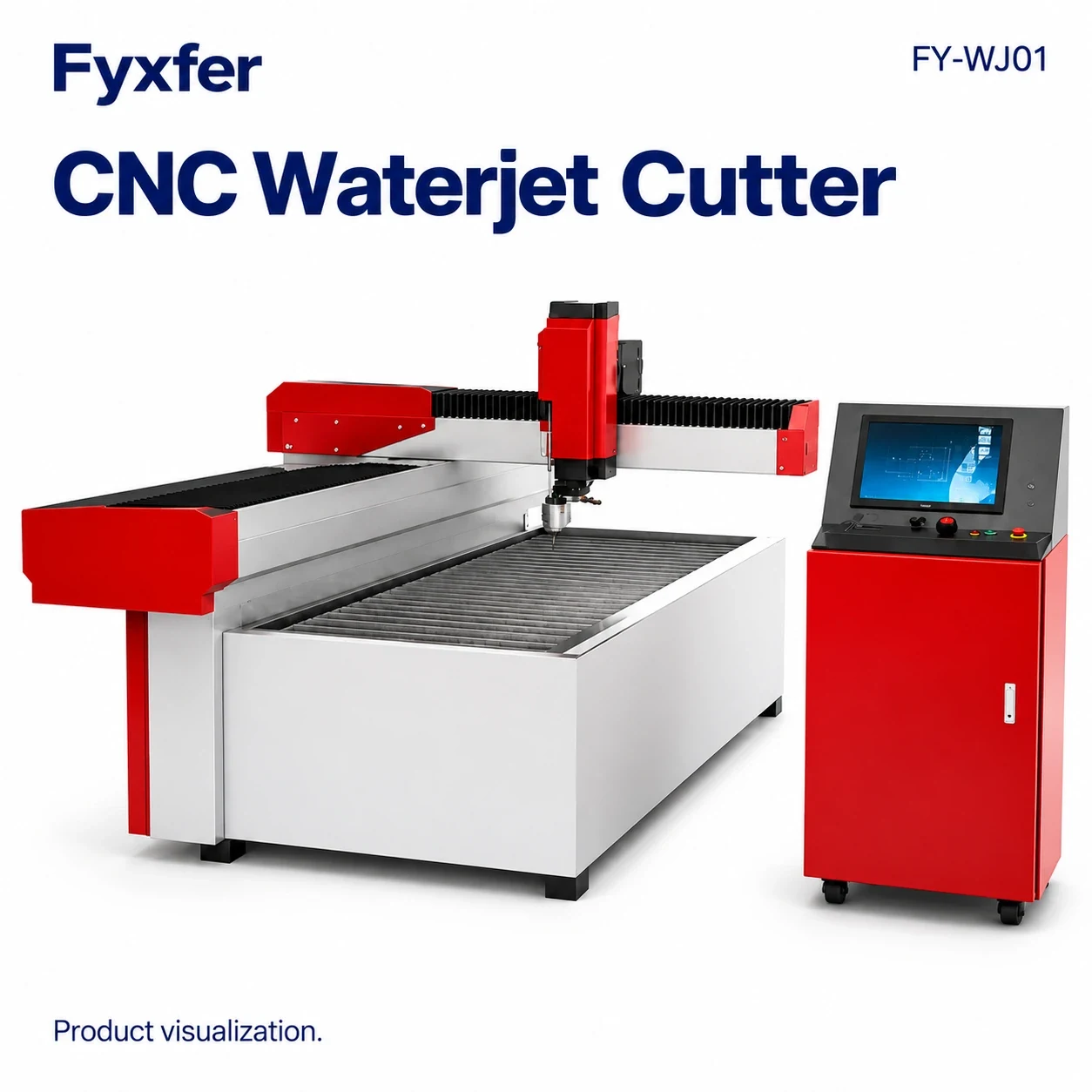

Product visualization based on the FY-WJ01 catalogue reference.
01 / FY-WJ01
Machine & details
Confirm the final equipment and configuration in the quotation.
Stone, glass and ceramic
Assess the exact material and geometry before agreeing the cutting setup and sample expectations; the family name alone does not establish suitability.
Plastic and rubber parts
Provide composition, shape, thickness and required finish so work support and process suitability can be reviewed together.
02 / Selection guide
Choose around your application
Match the equipment to the material, part and production workflow.
MATERIAL & EDGE
Describe the result before the cutting setup.
Waterjet applications can span several material families, but your grade, thickness and edge requirement define the actual task. Ask for a sample review where the finish or geometry is important to the next production step.
- Exact material and thickness
- Required edge condition
- Representative sample or drawing
Does a listed material guarantee suitability?
Discuss my application ↗No. Material, geometry and the selected cutting setup need review together. A general application list does not establish the result on your part.
Product visualization based on the FY-WJ01 catalogue reference.
PART & SUPPORT
Fit the whole workpiece to the job.
Describe the stock dimensions, openings and contour details, then review the cutting area and support arrangement. The cantilever layout and slat table explain the format; they do not define a fixed capacity or universal part clearance.
- Stock dimensions and finished contour
- Small openings and drawing format
- Loading and workpiece support
What working area should I specify?
Discuss my application ↗Start with the complete workpiece and planned layout. Confirm usable cutting area, support and loading access together against the selected machine configuration.
01 / Complete Machine Product visualization based on the catalogue reference. Open full-size image ↗
PUMP & SITE
Agree the process equipment and utilities.
Review the pump, cutting head and any abrasive-feed configuration for the material. Include water arrangements, handling and site utilities in the proposal, and separate included equipment from customer-prepared work.
- Pump, head and process choice
- Water and site utility arrangements
- Loading route and expected output
Are pump pressure and cutting speed fixed?
Discuss my application ↗They must be confirmed for the selected pump, head and material. Request equipment specifications and a representative sample or job review before agreeing performance.

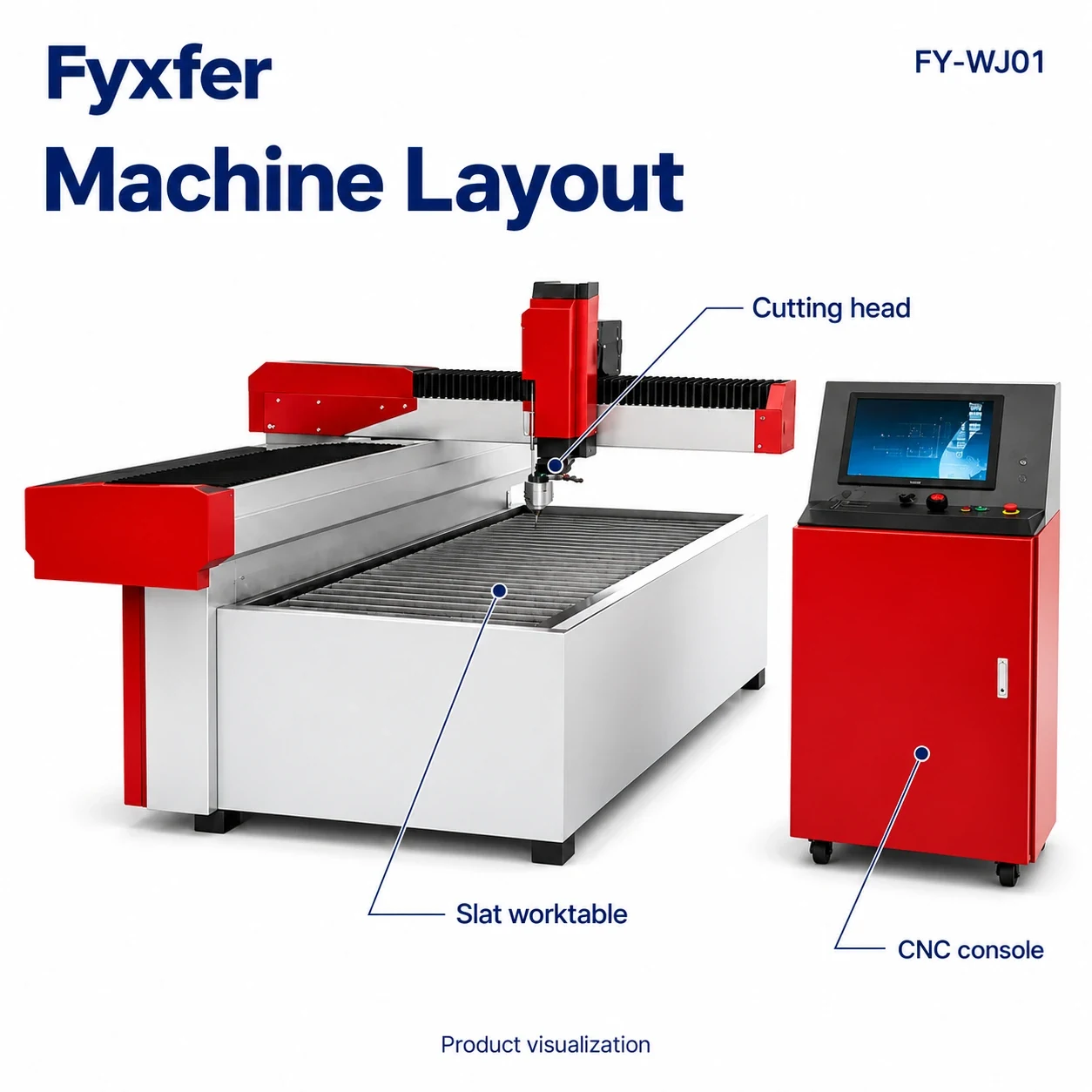

02 / Machine Layout Illustrated machine layout. Open full-size image ↗
03 / Configuration
Configuration & supply scope
Confirm the final equipment and configuration in the quotation.
| Model | FY-WJ01; CNC waterjet cutting machine. |
|---|---|
| Machine format | Cantilever cutting table with separate CNC console. |
| Workpiece support | Slat worktable; support arrangement reviewed for the job. |
| Working area | Confirmed against stock dimensions and the selected configuration. |
| Cutting setup | Pump, cutting head and any abrasive-feed arrangement confirmed for the material. |
| Application materials | Metal, stone, glass, ceramic, plastic and rubber are review categories, not unconditional suitability claims. |
| Site requirements | Loading, workshop utilities and water arrangements defined for the project. |
| Supply and acceptance | Final dimensions, components, performance and accessories specified in the confirmed quotation. |
More published configuration details
Review the Configuration Before Ordering
Images explain the product layout. Final dimensions, components, performance and included accessories are specified in the confirmed quotation.
| Model | FY-WJ01 |
|---|---|
| Machine Family | CNC Waterjet Cutting Machines |
| Layout | Cantilever cutting table with separate CNC console |
| Working Area | Confirm against the required workpiece and selected configuration |
| Cutting Setup | Confirm the pump, cutting head and any abrasive-feed configuration for the material |
| Project Review | Material, thickness, drawing, edge requirements, loading and workshop utilities |
Related equipment
Compare the formats
04 / Downloads
Planning resources
Download the waterjet cutting selection guideEnglish document · 105 KB↓Before you enquire
Do the illustrations show a proven cutting result?+
No. They explain the layout and workflow. Agree a representative material sample when evaluating edge quality or part acceptance.
Can I choose from a pressure or thickness table?+
Request the data for the proposed configuration. Send part details for a matched cutting setup rather than adopting pressure or thickness values from another machine.
What should the quotation include?+
The work area, pump, head, abrasive arrangement if needed, support, utilities, sample expectations and delivery scope should be explicit.
05 / Discuss my application
Tell us what you need.
Mention FY-WJ01 and share your material, thickness, drawing and edge requirements. Include stock dimensions, loading plans, water arrangements and expected output.
Selected machineFY-WJ01
FY-WJ01
Tell us what you need.
Continue on our contact page to share your application and request a configuration.
Discuss my application ↗
